Leonardi.DB

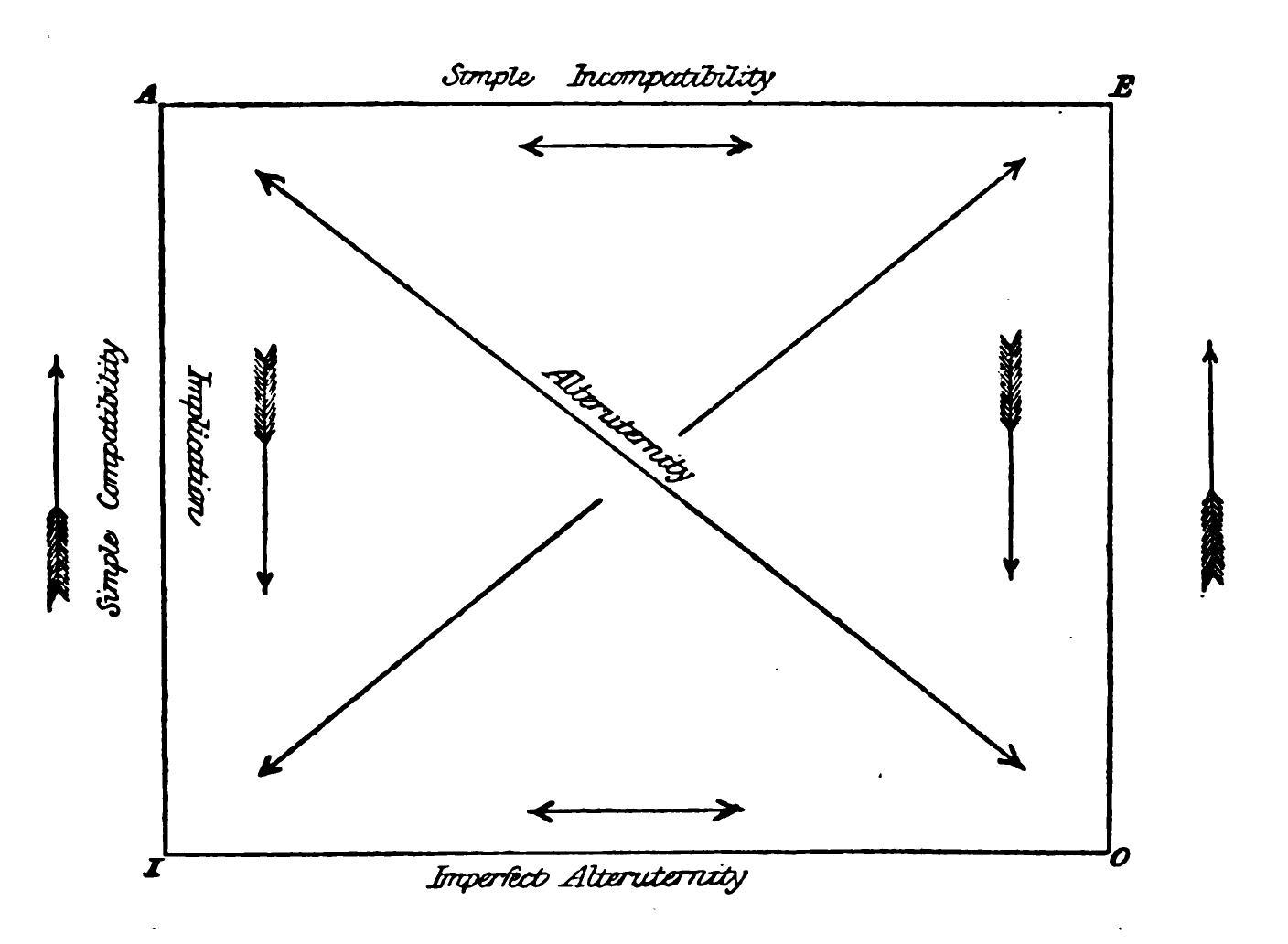

a logical geometry project

On the Theory of Logic: An Essay (1878), p. 171
by Read, Carveth

Logic

Aristotelian family
Classical Sigma-2
Boolean complexity
3
Number of labels per vertex (at most)
1
Uniqueness of the vertices up to logical equivalence
Yes
Errors in the diagram
No

Geometry

Shape
Rectangle (irregular)
Colinearity range
0
Coplanarity range
0
Cospatiality range
0
Representation of contradiction
By central symmetry

Vertex description

Conceptual info
Yes
Mnemonic support (AEIO, purpurea ...)
Yes
Form
none
Label type
symbolic
Symbolic field
logic
Contains partial formulas or symbols
Yes
Logical system
syllogistics

Edge description

Contains definitions of relations
No
Form
solid lines
Has arrowheads
Yes
Overlap
No
Curved
No
Hooked
No
As wide as vertices
No
Contains text
Yes
Label type
linguistic
Language
English
Contains partial sentences or single words
Yes
Contain abbreviations
No

Style

Diagram is colored
No
Diagram is embellished
No
Tags
diagram chasing

Additional notes

This diagram occurs rotated 90° clockwise in the actual book.
