Introductiones naturalium (1475–1500), fol. 72v
by Netter, Thomas
Copyright according to our policy
- Aristotelian family
- Classical Sigma-2
- Boolean complexity
- 3
- Number of labels per vertex (at most)
- 1
- Uniqueness of the vertices up to logical equivalence
- Yes
- Errors in the diagram
- No
- Shape
- Rectangle (irregular)
- Colinearity range
- 0
- Coplanarity range
- 0
- Cospatiality range
- 0
- Representation of contradiction
- By central symmetry
Logic
Geometry
- Conceptual info
- No
- Mnemonic support (AEIO, purpurea ...)
- No
- Form
- square
- Label type
- linguistic
- Language
- Latin
- Contains partial sentences or single words
- No
- Contains abbreviations
- Yes
- Contains definitions of relations
- No
- Form
- bands
- Has arrowheads
- No
- Overlap
- Yes
- Curved
- No
- Hooked
- No
- As wide as vertices
- No
- Contains text
- Yes
- Label type
- linguistic
- Language
- Latin
- Contains partial sentences or single words
- Yes
- Contain abbreviations
- Yes
Vertex description
Edge description
- Diagram is colored
- No
- Diagram is embellished
- Yes
Style
Additional notes

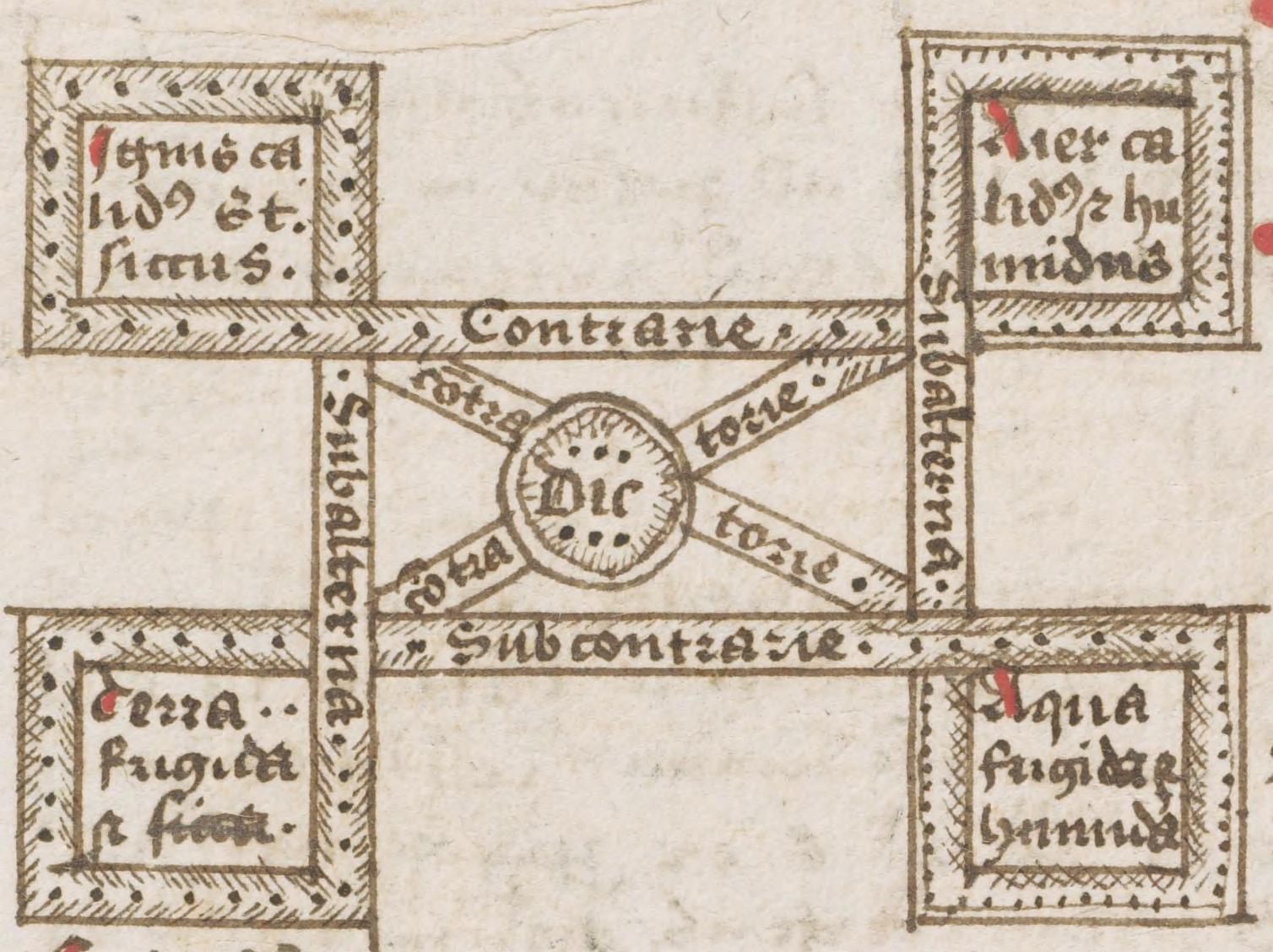

- The Aristotelian relations (CD,C,SC,SA) hardly seem applicable in this diagram, which shows the four elements from Aristotelian natural philosophy:
- in the A-vertex: ignis / calidus et siccus
- in the E-vertex: aer / calidus et humidus
- in the I-vertex: terra / frigida et sicca
- in the O-vertex: aqua / frigida et humida
