Metalogical Decorations of Logical Diagrams (2016), p. 262
by Demey, Lorenz; Smessaert, Hans
Copyright according to our policy
Caption

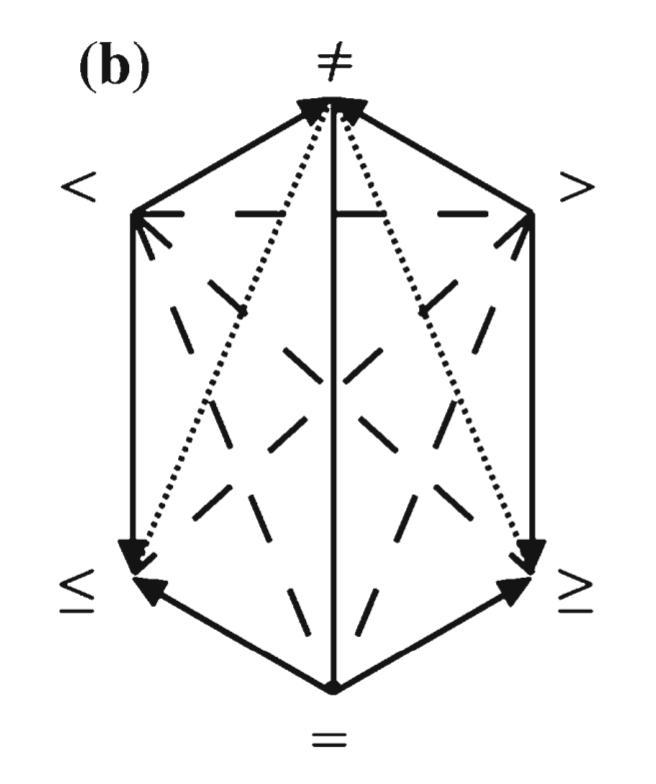

- Aristotelian hexagon for a a total order, and b a partial order
- Aristotelian family
- Non-Sigma
- Boolean complexity
- 4
- Number of labels per vertex (at most)
- 1
- Uniqueness of the vertices up to logical equivalence
- Yes
- Errors in the diagram
- No
- Shape
- Hexagon (irregular)
- Colinearity range
- 0
- Coplanarity range
- 0
- Cospatiality range
- 0
- Representation of contradiction
- N.A.
Logic
Geometry
- Conceptual info
- Yes
- Mnemonic support (AEIO, purpurea ...)
- No
- Form
- none
- Label type
- symbolic
- Symbolic field
- mathematics
- Contains partial formulas or symbols
- Yes
- Mathematical branch
- order theory
- Contains definitions of relations
- No
- Form
- dotted lines ,
- solid lines ,
- none ,
- dashed lines
- Has arrowheads
- No
- Overlap
- No
- Curved
- No
- Hooked
- No
- As wide as vertices
- No
- Contains text
- No
- Label type
- none
Vertex description
Edge description
- Diagram is colored
- No
- Diagram is embellished
- No
- Tags
- Leuven
Style
Additional notes
- The negation closure of this diagram is a sigma-6 diagram.
